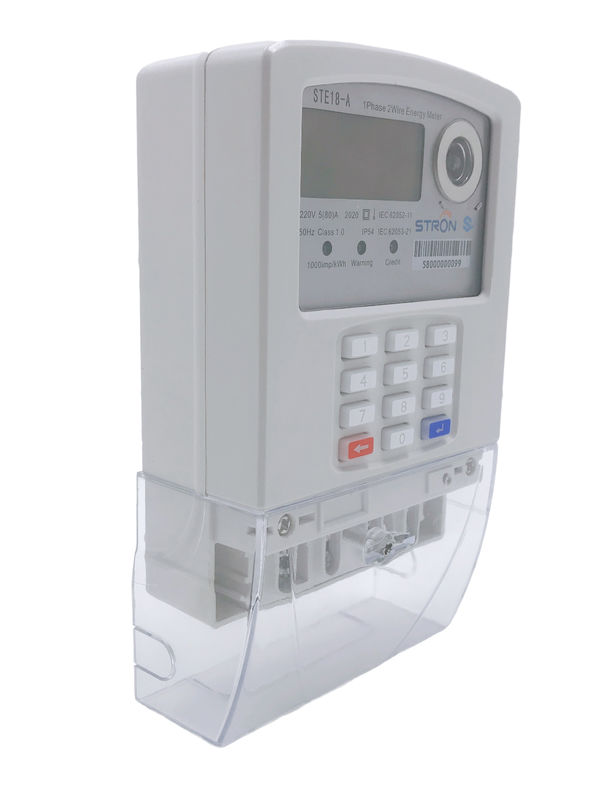

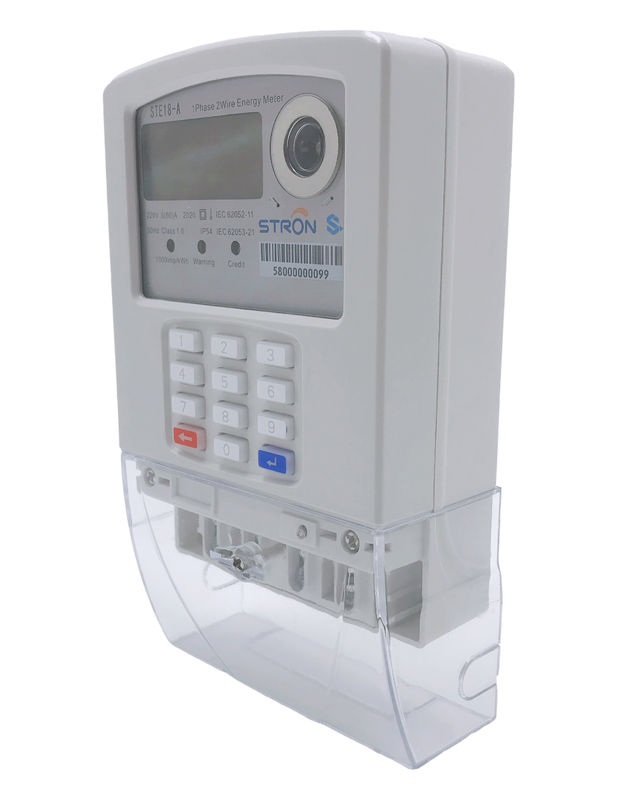

Stron Smart STS single phase keypad electricity meter

STE18-a is a STS (standard transmission specification) keyboard prepayment meter, which can be automatically turned on or off according to the credit balance. It can be complemented by our own vending system developed by stron's well-known R & D team, stron's vending software directly communicates with the automated metering infrastructure (AMI) system via lora-rf or PLC modules.

With IP54 waterproof protection grade, it can be installed on the poles far away from users indoors or even outdoors. The plug-in programming of ste18-a supports remote connection and disconnection. When there is no credit left, the meter will be turned off immediately. After charging through the corresponding 20 bit token, press enter and the meter will be turned on. If you use the real-time clock chip and battery, the meter can also display your local time, the battery life is generally about 8 years, easy to replace. Utilities or power companies can set time of use tariff according to their needs, for example, charging us $1 per kilowatt hour and US $2 in addition within a time interval, which helps utilities and power companies to manage and control electricity meters and consumption reasonably and profitably.

Our preferred way of communication is to use Lora RF and stron data concentrator, which can collect Lora RF signals within a distance of about 1km, with a maximum of 300 watt hour meters, and send the data to the main server through GPRS. In this way, a local SIM card is needed, and the daily data consumption is less than 1MB, so there is almost no need to worry.

STS split prepayment water meter has a broad market prospect in Africa. We also design and manufacture STS prepaid instruments and ODM / OEM for other instrument manufacturers. If you need further information to make your business strong and profitable, we are glad to hear from you.

Features

1. STS Standard
2. Up to 8 years battery life
3. Remote connection/disconnection
4. IP54 waterproof
5. Real-time clock
6. Time of Use price
7. Anti-tamper
8. Lora-RF communication
9. Mobile Payment
10. ISO 9001; ISO 14001 compliant

Key benefits

Meter Recharge: By inputting 20 digits Token.

Low Credit Alarm: Alarm value can be set by inputting corresponding TOKEN.

TOU tariff: Meters can be set Step Tariff by inputting corresponding TOKEN. Utilities can set step price on request.

Anti-Tamper Functions: Meter will automatically shut off after detection of terminal cover open event.

Information Inquiry: Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code.

Electrical Parameters

Electric Magnetic Compatibility
