50HZ 307.2Wh LiFePO4 배터리와 오프 그리드 태양계 장비

PayGo Solar Home System 80W Mini Power Generator with Telivision&Fan&Radio&Torch&Lambs

ST1388 Paygo solar home system is STS compliant, keypad input type,electronic load controlled portable smart pay as you go solar home system. It meets the Lighting Global quality standard and can be recharged by inputting 20digits Token. The battery is able to be full charged within 4 hours and power above 4-6 hours. This product has high quality with 2 years warranty, easy to install, top up and run. We also provide Solar Vending Software and Investment Of Return(IOR) solution, which can manage the clients better and return your investment more quickly.

Main Features

1. ST1388 is a reliable and environmental solar solution for off-grid areas

2. It can power LCD TV, DC Fan, Lights, Radio, Torch and your cellphone after few hours charging.

3. Pay As You Go solution can make clean energy becomes more affordable, people can make payments on a daily, weekly or monthly basis.

4. Stronpay vending software can integrated with local mobile payment via API, people can easily pay with their mobile phone and get the recharge Token via GSM.

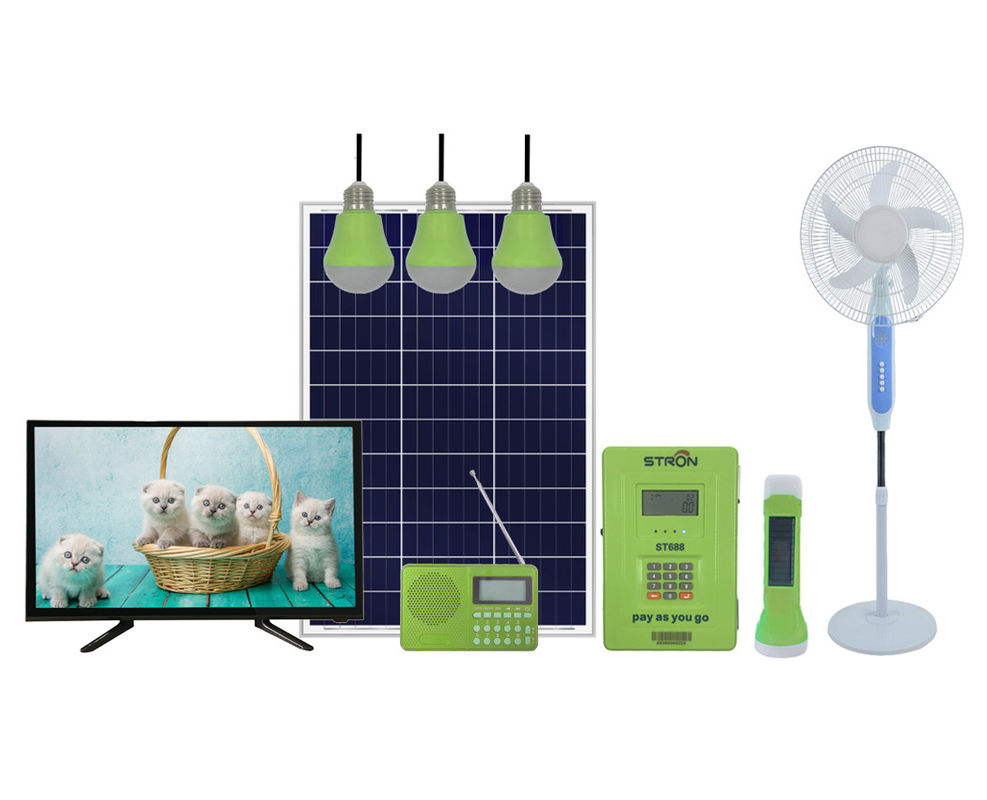

Components

1. 1×12.8V/24000mAh(LiFePO4) Contoller box

2. 1×80W Poly Crystalline Solar Panel

3. 3x 3W/300lm LED bulbs with 5M cables

4. 1x32inch 22W DC TV(T2+S2)

5. 1x10W Fan

6. 1xRadio,3.7V 2000mAH Li-ion Battery

7.1x Torch 3.2V 400mAH Li-ion Battery

8. 1x 4-in-1 Mobile phone charger cable

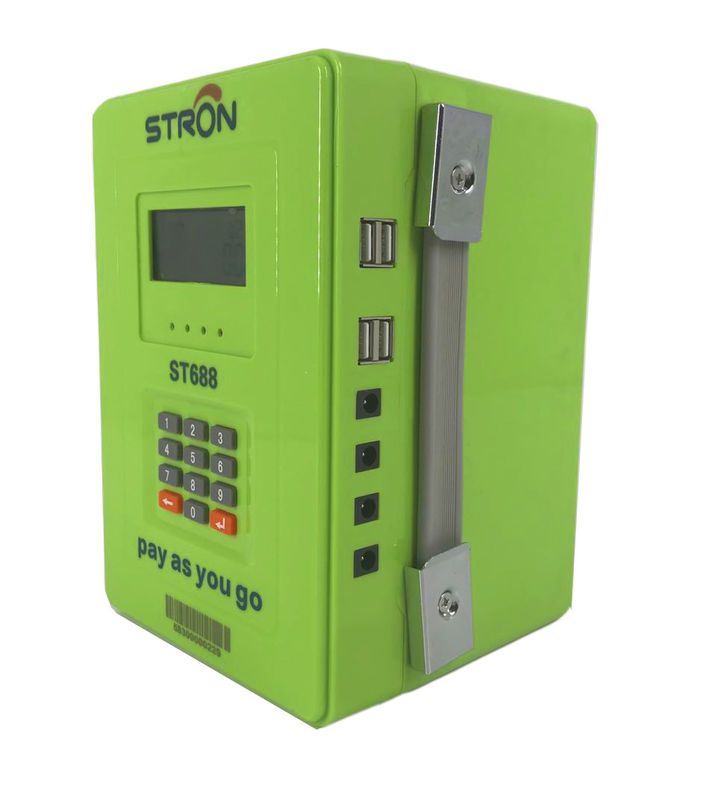

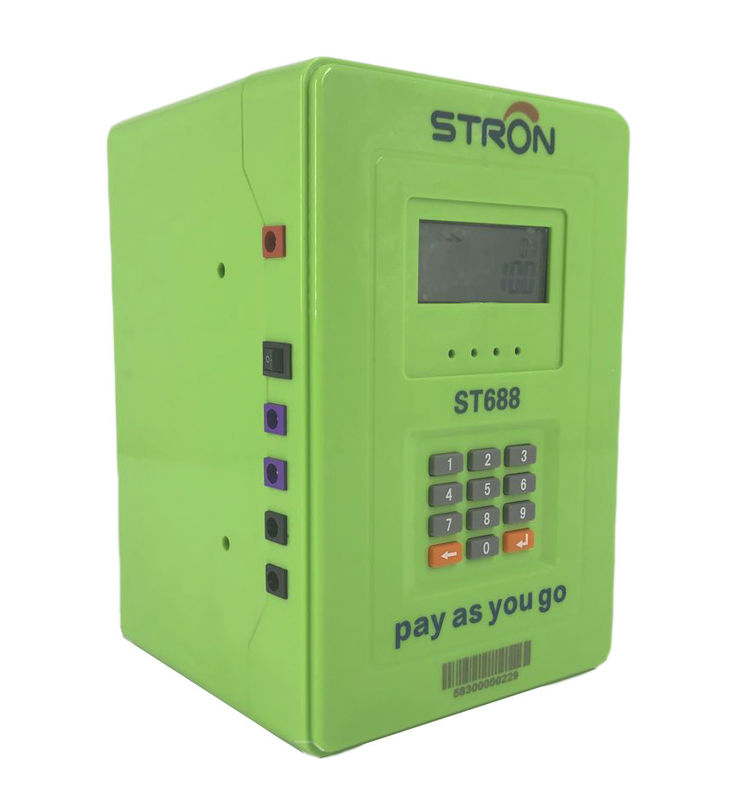

Solar Controller

The solar controller is the key product of the Paygo solar kit, it has 0-9 keypad, delete and enter buttons, indicators for charging, credit, switch and battery with Red/Green signal, PV module input and 4 LED output, 4 TV and Fan output and 2 USB output. It can power lights, torch, radio, TV, Fan and charge your mobile phone at the same time.

Charging Time:

☀Battery: 5 hrs under sufficient sunlight.

☀Radio: 4-6hrs

☀Torch: 5-7hrs

Seperately Running Time:

☀ LED Light: 102hrs for one light, 34hrs for 3 lights

☀ DC Fan: 30hrs with full battery

☀ DC TV: 14hrs with full battery

☀ Radio: 5-7hrs after each full charging

☀ Torch: 4-8hrs after each full charging

Durability Tests:

1. Switch and connector cycling

2. Physical ingress protection test

3. High temperture and low temperture test

4. Transport vibration test

5. Salt spray test

Stronpay Vending Software

CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.

Vending Process

Step 1: Login the web-based vending website by inputting the user name, company name and password.

Step 2: Register the solar number and customer information at the library center.

Step 3: Set the price fors for different customers

Step 4: Open an account to combine the meter,customer and price information

Step 5: Get the Token at the Top up center.

Step 6: Input the Token with keypad.

Step 7: Recharging successfully.

Recharge at the sales point

Business mode

There are two business mode : Rent to Own Mode and Service Mode.

1. Rent to Own Mode

Customers rent the solar home system with a deposit and pay PAYG fee daily or monthly . Then they will own the product after a period of time(one year or two year). This Mode is more common.

2. Service Mode

Customers no need to pay the deposit, but pay the PAYG fee daily or monthly as long as he want to use the solar home system.
