Paygo Solar Home System For 50W Solar Panel
|
Product introduction
Stron provides reliable, affordable and environmental solar solutions for off-grid areas. We commit ourselves to improve the life of people who lack electricity. Stron enables people to replace deleterious and expensive kerosene lanterns and candles with modern solar energy that can power lights, cell phones, TVs, fans and other small electronic devices.
To make off-grid people life easier and more comfortable. Stron also provides pay as you go (PAYGO) solution, which enables people to pay by small installments using their mobile phones. By this way, clean energy becomes more affordable, which is what our company has been aiming for Strong hopes to bring more happiness to people in power-intensive areas with our high-quality products in the future. |
|
Main Features
1. Meet the Lighting Global quality standard; 2. STS(standard transfer specification) compliant; 3. Stronpay vending software can be provided for free; 4. Operating by inputting 20 digits Token; 5. Batteries are able to be full recharged within 4 hours; 6. Easy to install, top-up and run; 7. High quality with 2 years warranty. |
Controller Unit
| System indicator lights |
Indicators for Charging, Credit and Battery with Red/Green signal On/off indicator for the controller |
| Top-up Keypad | 0-9 keypad , delete button and Enter button |
| Outputs | 4×LED light outputs, 2×USB output |
| Inputs | 1×PV module input |
| 1×PV module input | Overvoltage, reverse voltage and short circuit protection |
Set parameters
| Components | Parameter |

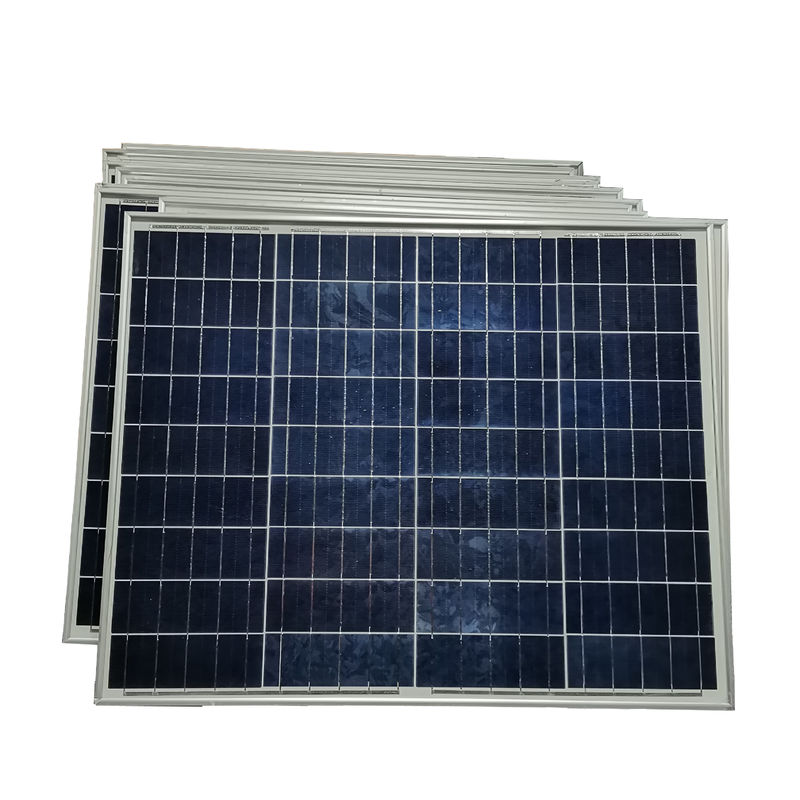

| Solar Panel | 50W 12V Polycrystalline solar panel with 5m cable |
| Solar Controller | Electronic controller include 12Ah LiFePo4 battery |
| DC TV | 19”LED HD digital 14W TV, Supports both satellite dish and antenna |
| LED Light | 4*3W/5V LED lamps with 5M cables |
| USB Phone Charger | 4-in-1 Phone Charging Cable |
| Stronpay Vending Software | For free if order amount ever 50 pieces |
Battery charging Time: 3.5 Hours under sufficient sunlight.
Seperately Running Time:
☀ LED Light: 51.2 hours for one light
12.8 hours for three lights
☀ DC TV: 9.6 hours with full battery
Stronpay Vending Software
|
Stronpay Vending Software is a Window-based vending management system. It consists of Stronpay management server(CMS) and Stronpay management Client(CMC)
CMC provides administrative operations, such as customer and meter registration, vending, report. It can be run on an independent device in form of standalone software. Multiple clients can be connected to a single management server(CMS). CMC also allows multiple operators and access to system which is configured by the administrator.
|
|
Features and benefits of CMS
☀ Scalable customer and meter installation bases. |
