원래 장소:
중국
브랜드 이름:
Stron
인증:
IS09001and ISO14001
모델 번호:
STE18-S

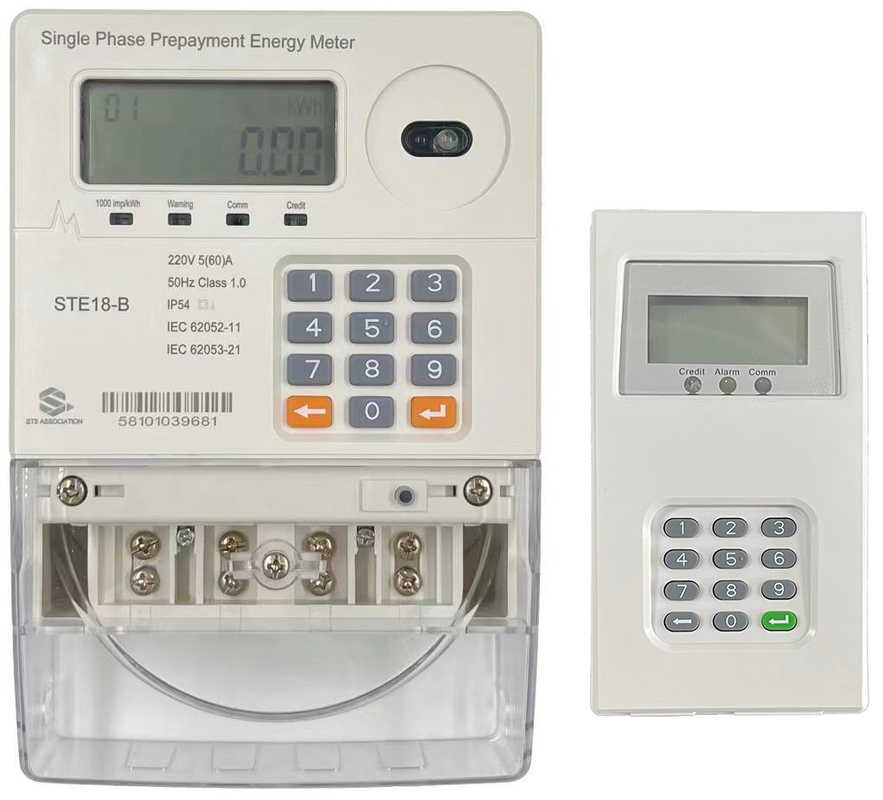

The prepaid keypad single phase electricity meter is mainly used to measure one phase active energy of the low-voltage network, and the voltage, current, power,etc. The RF communication module for remote functions could be added, which is convenient for users to monitor electricity consumption, collect data and switch on/off for the smart meter. Many pieces of meter could be installed in a meter box to count the electric energy for different rooms and loads. The product complies with IEC62053-21/23 and IEC62055-31 standard. The raw materials like metering chip and other key components, we use the high-level international brands, ensure the meter is high-precision and high-reliability. All of our meters are produced in accordance with IS09001 and ISO14001 standards, make sure the reliability and stability of the product, thereby extending product service life.
Functions
①Remote Communication-The single phase energy meter supports RF wireless communication, using CIU for meter reading, the distance is about 350m.-The tokens could be sent into meter by CIU remotely to recharge, clear tamper and clear credit. ②Power Supply-4pcs AA battery/USB data cable
Instruction Manual:
The single-phase energy meter has a credit for 10kwh when it completed in the factory, the balance is sufficient but the meter is in the tamper state. After powering on for the meter, we need to input 20 digits anti-tamper token into meters by keypads or matched CIU. Users could use energy normally after the meter clear tamper and close the valve. Then users can buy electricity as request
